Szczegóły Produktu:
|

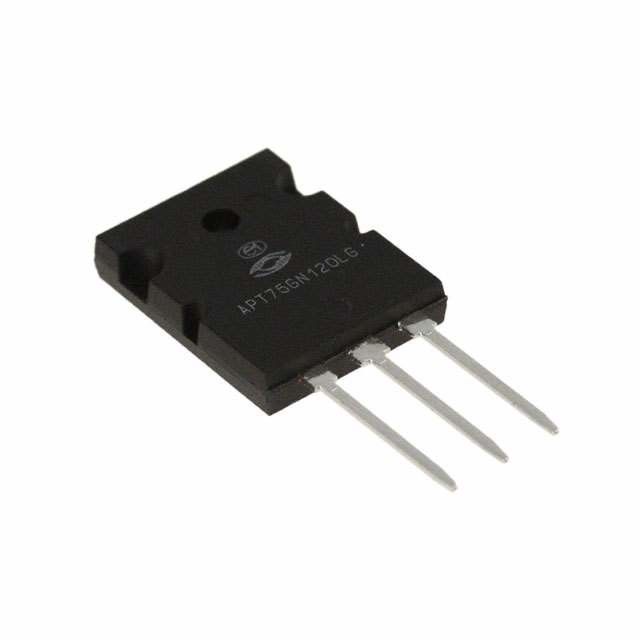

| Numer części: | APT75GN120LG | Producent: | Firma Microsemi |
|---|---|---|---|
| Opis: | IGBT 1200V 200A 833W TO264 | Kategoria: | Tranzystory - IGBT - Pojedyncze |
| Rodzina: | Tranzystory - IGBT - Pojedyncze |
| Part Status | Active |
|---|---|
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 200A |
| Current - Collector Pulsed (Icm) | 225A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Power - Max | 833W |
| Switching Energy | 8620µJ (on), 11400µJ (off) |
| Input Type | Standard |
| Gate Charge | 425nC |
| Td (on/off) @ 25°C | 60ns/620ns |
| Test Condition | 800V, 75A, 1 Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
